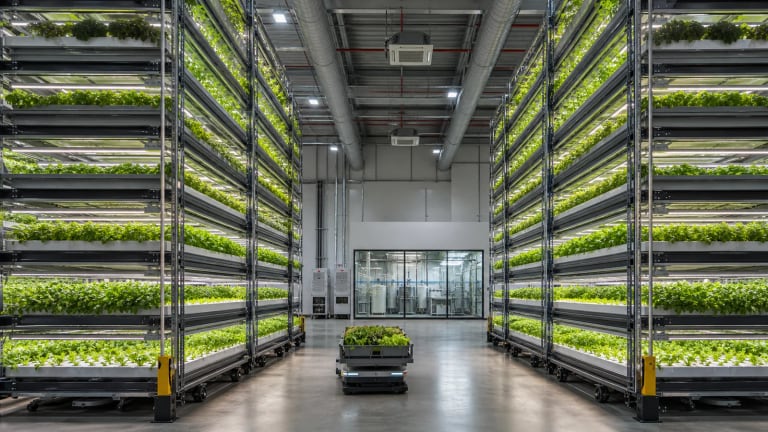

Commercial Vertical Farming System with LED Lighting and Climate Control

Commercial Vertical Farming System with LED Lighting and Climate Control

A multi-tier indoor-farming project integrating crop-specific LED recipes, hydroponics, HVAC and dehumidification, air circulation, pH, EC and dissolved-oxygen monitoring, water recirculation, biosecurity and production workflow.

AgriTech.tr prepares this entry as a supplier-neutral technical sourcing scope so buyers can define a comparable request before suitable suppliers are researched and confirmed during sourcing. It does not reproduce a single vendor catalogue. Depending on the project, the potential scope may include local equipment and services or imported specialist components where technically necessary; the actual supplier and origin are confirmed during the quotation process.

Technical sourcing scope

The values below are not guaranteed single-model performance. They are typical, configurable procurement envelopes used to place competing quotations on the same engineering basis. Capacity, recipe, climate, water analysis, feedstock properties, target quality, utilities, and destination-country requirements are frozen in the final project schedule.

Process and integration sequence

1. Select crop portfolio, production schedule, tier layout and biosecurity zones.
2. Model lighting, sensible and latent heat, airflow and water loads.
3. Install growing, lighting, HVAC, water and control systems as coordinated zones.
4. Commission crop recipes for light, climate, irrigation and sanitation.
5. Measure yield, quality, kWh/kg and water use through representative cycles.

The line or system boundary is documented through a responsibility matrix covering reception and infeed, process equipment, automation, safety, product discharge, utility interfaces, and data records. For brownfield integration, electrical single lines, piping and instrumentation, floor/loading data, drainage, ventilation, water quality, compressed air, steam, refrigeration, and network interfaces are reviewed before order.

Suitable applications

• Lettuce and leafy greens
• Basil and culinary herbs
• Microgreens
• Seedling and transplant production

Engineering, compliance, and acceptance

• Quotations are compared against the same feed or product specification, inlet condition, shift pattern, net capacity, and target output quality.
• Food-contact materials, machine safety, electrical panels, pressure equipment, refrigerants, emissions, occupational safety, and hygienic design are specified for the destination and the actual process risk.
• Factory and site acceptance tests define the measurement method, sample size, tolerances, run duration, rejection criteria, and correction period in writing.
• The procurement dossier requests a revision-controlled technical schedule, equipment and motor lists, material specifications, utility consumption, critical spares, preventive maintenance, manuals, and operator training.
• Capacity, yield, energy, water, product-loss, quality, or biological-performance statements are not treated as guarantees without the actual design inputs and an agreed acceptance test.

How to compare quotations

• Productive growing area versus footprint
• Crop PPFD, DLI and uniformity
• LED efficacy and output maintenance
• HVAC and dehumidification kWh/kg
• Water recirculation and sanitation
• Labour flow and biosecurity zoning

Buyers should request at least three comparable quotations, references for similar installations in Türkiye, CE/conformity documentation, warranty boundaries, critical-spares lead times, and after-sales response commitments. This makes lifecycle cost, operability, and local service capacity visible alongside the purchase price.

Technical references

• Cornell Controlled Environment Agriculture
• Cornell CEA hydroponic lettuce handbook
• Istanbul Commodity Exchange greenhouse-sector report

The references support process principles and design boundaries; they do not certify a particular supplier’s performance. Final acceptance is based on the selected supplier’s written offer, project engineering, site review, and FAT/SAT protocol.
