This profile defines a sourcing requirement for solar aquaculture water-quality monitoring system. Suitable suppliers, origin, availability, and commercial terms are confirmed for the buyer’s project. The sourcing brief is structured around capacity, application, operating environment, required standards, destination, and delivery scope; the exact configuration requires supplier confirmation.

Continuous dissolved-oxygen monitoring for fish cages is not simply a dashboard feature. In marine and inland cage aquaculture, the value of a monitoring system depends on whether it measures at a representative depth, remains operational through weather and power constraints, preserves a trustworthy time series, and delivers an alarm early enough for farm staff to take a defined action.

The practical comparison is the full operating chain: probe → probe depth → sensor condition → local processor → power system → network → central server → alarm → trained responder → oxygenation or farm action. A failure at any link can reduce the value of an otherwise capable sensor.

What the cage monitoring system is designed to measure and transmit

Measurement interval, probe depth, and sensor package

Aquaculture telemetry is configured around the response time required by the farm, the depth occupied by the fish, site connectivity, and the number of water-quality parameters. Measurement and cloud-transmission intervals in the 5–10 minute range and standard probe-cable lengths in the 10–15 metre range are practical reference configurations; faster intervals, longer cables, or multi-depth sensing can be engineered where oxygen risk, cage depth, or response procedures require them.

The base monitoring package can combine optical dissolved oxygen, temperature, and oxygen saturation. Project options may add pH, salinity, turbidity, chlorophyll-a, GPS positioning, extended probe cables, and buoy-mounted hardware. Each sensor should be listed separately with its range, accuracy, resolution, compensation method, calibration procedure, installation depth, sampling interval, and maintenance requirement.

The project configuration schedule defines the measurement interval, transmission interval, probe depths, installed parameters, GPS scope, communications architecture, local data buffering, firmware and software revision, alarm channels, and quotation revision.

Why continuous oxygen monitoring is different from handheld sampling

A handheld oxygen meter provides information at the time and place of a manual measurement. A fixed monitor creates a time series from repeated measurements at a defined sensor position.

USGS technical guidance on continuous water-quality monitoring notes that water quality can change frequently and that repeated measurements at short enough intervals can create a nearly continuous record. The same guidance stresses representative sensor placement and the importance of site selection, vertical variation, cleaning, calibration, fouling, and record review.

For cage aquaculture, the commercial question is not “Does the system measure oxygen?” It is:

“Does the installed sensor detect the oxygen conditions that matter to the stocked fish early enough for the farm to respond?”

A conveniently installed sensor can still produce a weak risk signal if fish occupy another depth, the water column is stratified, the probe is influenced by local oxygenation equipment, or fouling causes measurement drift.

Probe depth should follow fish and water-column risk

A single probe measures conditions at its installed sensing point. It does not automatically describe dissolved oxygen throughout the entire cage volume.

Before installation, document cage diameter and net depth, species and production stage, fish distribution by time and season, feeding depth, thermocline or stratification patterns, current direction, oxygenation equipment position, historical low-oxygen events, and whether one representative depth or multi-depth sensing is required.

Where vertical oxygen conditions vary materially, consider a multi-depth profiling exercise before fixing the permanent probe position. Permanent installation should follow the facility’s actual risk objective rather than cable convenience.

Optical dissolved-oxygen probe architecture and specification

Optical dissolved-oxygen probes avoid the membrane-and-electrolyte maintenance routine associated with galvanic probes. The selected probe is specified by measurement range, accuracy, response time, optical-cap life, compensation method, cleaning interval, calibration workflow, and deployment depth.

The project quotation identifies the exact probe manufacturer and model, measurement range, accuracy, resolution, optical-cap type and replacement interval, response time, compensation functions, and applicable performance certificates.

A technical quotation should identify the precise probe model. Without it, a farm cannot reliably compare mg/L and saturation range, stated accuracy, resolution, T90 or other response-time metric, calibration frequency, optical sensing-cap life and cost, pressure/salinity/temperature compensation, maximum deployment depth, connector rating, biofouling protection, or spare-probe availability.

Cleaning, biofouling, and field verification remain critical

Optical sensing does not remove the need for quality assurance. USGS guidance emphasizes field observation, cleaning, calibration, and record review and identifies rapid biofouling and corrosion as particular challenges in coastal monitoring environments.

A cage-farm maintenance plan should define visual inspection frequency, cleaning triggers and methods, pre-cleaning and post-cleaning readings, reference-meter comparison, calibration records, sensing-cap or probe replacement criteria, and a policy for flagging suspect historical data after drift, fouling, or sensor failure is discovered.

Remote calibration can be useful, but it should not be treated as a substitute for physical probe inspection and field validation. A cloud interface cannot visually identify marine growth, physical damage, cable abrasion, or incorrect probe placement.

Solar autonomy needs an energy budget, not only the phrase “solar powered”

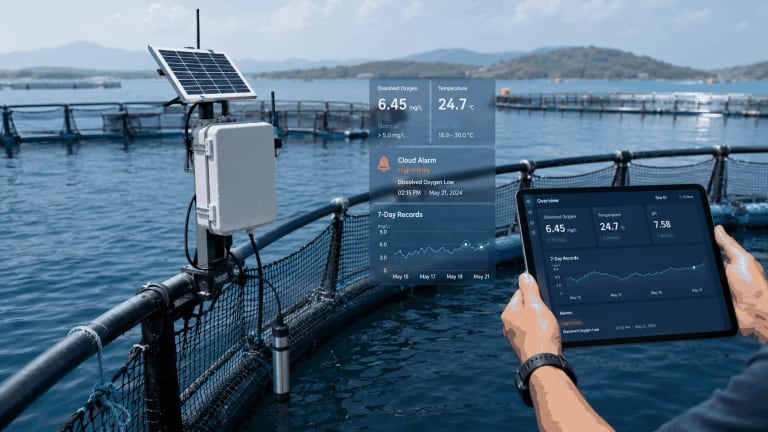

The cage-mounted module combines a solar panel, rechargeable battery, charge controller, and IP68-rated enclosure. A four-bolt upper-pipe mounting arrangement can be adapted to the cage diameter, material, wave loading, and maintenance-access requirements.

Buyers should request an explicit energy budget covering solar-panel rated power, battery voltage and usable capacity, battery chemistry, processor/probe/modem consumption, GPS consumption where fitted, normal measurement and transmission cycle, minimum design solar conditions, expected autonomous operating days without useful charging, low-voltage threshold, battery-health monitoring, and deep-discharge recovery.

Continuous operation is engineered from an explicit energy and communications budget. Site autonomy depends on the installed battery, panel, transmission behavior, seasonal irradiance, shading, solar-surface fouling, temperature, and hardware condition.

IP68 is not the whole marine durability specification

An IP68 housing does not by itself answer every long-term cage-farm exposure question. The installation review should also cover salt and corrosion exposure, UV resistance, cage movement and vibration, wave loading, mechanical impact, connector sealing, cable glands, galvanic corrosion between mounting materials, storm preparation, solar-panel attachment, bird fouling, poor-weather maintenance access, and enclosure-seal replacement after service.

The four-bolt mounting design is checked against the actual upper-pipe diameter, cage material, operator requirements, and the cage structural requirements.

Data transmission: survey the actual cages, not only the shore office

Data transmission can use a barge + cage architecture, in which cage measurements reach a local gateway before secure forwarding to the central server, or a direct mobile-data architecture for sites without a barge and for more distant installations. The project radio survey defines gateway position, antenna arrangement, carrier coverage, offline buffering, retry behavior, timestamps, and data backfill after an outage.

For procurement, AgriTech.tr recommends a formal communications survey on the actual cages at the intended modem and antenna position and across relevant operators.

The acceptance test should answer what happens when the network disappears for 10 minutes, 1 hour, or 12 hours; whether measurements are stored locally; how many records can be buffered; whether buffered records upload automatically; whether original timestamps are preserved; whether communication loss produces an alarm; whether staff can distinguish low oxygen from no fresh sensor data; and whether every cage module has a heartbeat or last-seen status.

A stale dashboard value should never be visually indistinguishable from a current measurement during an oxygen-risk event.

Cloud records, Excel-style views, and data ownership

Measurements are stored as time-stamped records on the central server. Authorized users can inspect current and historical data from tablet, phone, or computer through graphs, tables, and exportable files. The project defines access roles, password and multifactor policy, retention, backup, audit logs, calibration-change records, and data delivery when an account closes.

Before procurement, distinguish viewing data as an Excel-style table from exporting machine-readable historical data.

Ask specifically for CSV/XLSX export, column definitions, timestamp and timezone format, cage and sensor identifiers, quality flags, alarm-state records, calibration and maintenance events, API options, maximum export period, retention, backup and disaster recovery, account-administrator ownership, authorized service access, cybersecurity responsibilities, and data return when the service ends.

Alarm limits must be species-, site-, and response-specific

The system supports user-defined lower and upper alarm limits. Alarm configuration should not begin by copying a dissolved-oxygen threshold from another farm.

Low oxygen can affect feeding and feed utilization, and severe or prolonged oxygen shortage can create mortality risk. A defensible alarm level depends on species, fish size, temperature, salinity, stocking density, acclimation, feeding state, site conditions, oxygenation capacity, and staff response time.

The alarm engine combines programmable upper and lower limits with rate-of-change logic, hysteresis, delay, multi-level escalation, SMS or application notification, acknowledgement, no-data alarms, sensor-fault alarms, and audit logs. Commissioning uses simulated low-oxygen, high-oxygen, sensor-fault, and communications-loss scenarios to verify recipients, timing, escalation, and recovery.

An alarm is only valuable when connected to an emergency-response workflow

Water-quality monitoring and automatic oxygenation are separate but integrable project layers. A complete oxygenation scope identifies the oxygen source or generator, storage, distribution headers, branch lines, diffusers, valves, actuators, control panels, sensor redundancy, interlocks, manual override, fail-safe state, power-loss behavior, and emergency operating procedure.

For each alarm class, document:

Who receives it → who acknowledges it → how the measurement is verified → what equipment is started or stopped → who travels to the cage → what feeding action is taken → when management is escalated → how the incident is closed.

For oxygenation integration, verify available oxygen or aeration capacity, distribution architecture, valve and actuator logic, manual override, control interlocks, sensor redundancy, fail-safe behavior, oxygen depletion alarm, power-loss behavior, maximum response time, and post-event audit records.

Automatic control based on one dissolved-oxygen probe requires particularly careful review of sensor validity and failure behavior.

Standard and optional parameters need configuration control

The core monitoring package covers dissolved oxygen, temperature, and oxygen saturation. Optional project modules include pH, salinity, turbidity, chlorophyll-a, GPS, probe cables longer than 15 metres, and buoy-mounted configurations.

The quotation explicitly states whether GPS is installed, its accuracy, reporting interval, antenna arrangement, and use in cage identification or asset tracking.

The same rule applies to every additional parameter. A broad platform description should not be interpreted as confirmation that pH, salinity, turbidity, or chlorophyll-A sensors are included in the standard cage module.

Technical procurement checklist

1. Identify every cage and production zone. Record cage diameter, net depth, coordinates, species, biomass, normal swimming depth, and oxygen-risk history.
2. Define the monitoring objective. Set the scope for emergency oxygen warning, feeding support, production analysis, compliance records, or a combination.
3. Specify the optical probe. State measurement range, accuracy, resolution, response time, compensation functions, calibration method, optical-cap life, and deployment limits.
4. Engineer probe depth and cable length. Select 10 m, 15 m, extended, or multi-depth arrangements from cage geometry and fish distribution rather than from a default package.
5. Set measurement and transmission intervals. Define separate sensor-sampling, local-logging, cloud-transmission, alarm-evaluation, and retry intervals; 5–10 minute telemetry is a reference range, not a fixed rule.
6. Select the sensor package. Itemize dissolved oxygen, temperature, saturation, pH, salinity, turbidity, chlorophyll-a, GPS, and any buoy-mounted equipment.
7. Design representative placement. Document cage position and sensor depth, then validate that readings represent the water occupied by the fish.
8. Define calibration and cleaning. Set inspection frequency, cleaning method, reference-meter checks, consumables, drift limits, and service intervals.
9. Test communications resilience. Verify local buffering, reconnection, timestamp preservation, backfill, heartbeat status, and no-data alarms during an outage.
10. Calculate solar autonomy. Size the panel, battery, charge controller, and transmission duty cycle for seasonal irradiance, shading, fouling, temperature, and required no-sun operating time.
11. Commission the alarm workflow. Simulate advisory, action, emergency, sensor-fault, low-battery, and communications-loss events through acknowledgement and escalation.
12. Approve acceptance criteria. Define uptime, data completeness, sensor comparison, alarm latency, recovery behavior, training, and handover records before commissioning.

Suggested site acceptance test

A serious commercial deployment should use a documented acceptance procedure rather than accepting the system only because values appear on a screen.

Verify module identity and cage coordinates; record probe model and serial number; measure actual probe depth; compare oxygen and temperature readings with a maintained reference instrument at the same depth; trigger lower and upper alarms; confirm intended recipients; disconnect communications and verify buffering; restore communications and inspect timestamps; evaluate solar/battery status using the approved project maintenance procedure; export a historical period; review user permissions; record calibration and cleaning procedures; and confirm spare-part and service contacts.

Acceptance limits for sensor agreement should be based on the identified probe specification and agreed project documents, not on a generic AgriTech.tr threshold.

Comparing cage aquaculture monitoring solutions in Türkiye

When comparing aquaculture IoT, fish-farm oxygen monitoring, cage water-quality sensors, optical dissolved-oxygen probes, remote aquaculture alarms, or cloud monitoring platforms in Türkiye, farms should compare the installed operating system, not only the sensor list.

A lower-cost monitor with good probe placement, clean sensors, reliable communications, clear alarm ownership, and fast emergency response may provide more operational value than a broader sensor package with weak maintenance and no response process.

The sourcing brief can be used to define the application, technical interfaces, documentation, and service requirements before supplier research begins.
